Uncoated insulation boards

Lightweight insulation boards made of extruded polystyrene

uncoated insulation boards
electric underfloor heating

Application

Under SPM and PVC heating mats

Under heating cables

Room Type

Ideal for bathrooms and kitchens

Build Type

Renovation

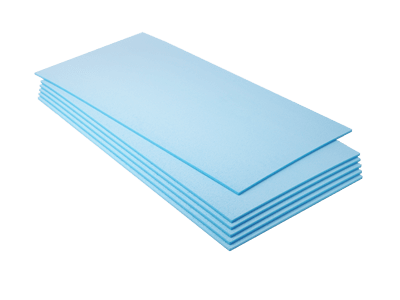

The uncoated insulation boards are water resistant and are made of extruded polystyrene.

The board is designed for use under a screed coating. Special care must be taken to avoid contact between the electrical floor heating system and the insulating board, usually by means of a thin layer of adhesive or by installing a metal mesh on which the heating cables are attached.

Benefits

N

Increase energy. effectiveness

Accelerates the warm up time by 90%

N

Strong and flexible

The boards can be cut to any shape

N

Vodotesné a zvukotesné

Dosky sú vodotesné a majú vynikajúce zvukovzdorné vlastnosti

Size 1250 x 600 mm
Thickness 10 and 20mm
Density 36 kg/m³
Thermal conductivity 0,031 W/m² ºK
Compressive strength 300 kPa
Water absorption 1,5% max
Fire class “E” (EN13501-1)
