Self-Regulating Cable

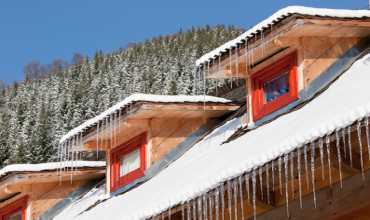

The Warmup Self-Regulating Cable protects against dangerous build-up of snow and ice on roofs, within gutters and downpipes and prevents pipes from freezing.
Applications

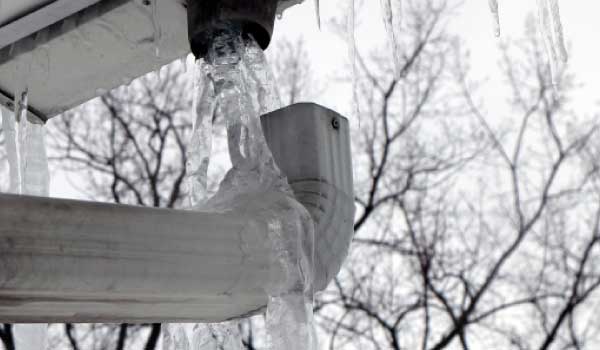

Roof and Gutter De-icing
Pipe Frost Protection
Drain Frost Protection
The self-regulating heating cable has a special conductive core between the two bus wires. This core becomes more conductive during cold ambient conditions; therefore the heating cable will increase its wattage per linear metre, in response to the cold. This feature makes it ideal for the freeze protection of exposed surfaces in the winter.
This type of cable will also decrease its power output (watts per linear metre), in warmer conditions, when the higher temperature will make the special core less conductive.
Although its called “self-regulating,” this cable will NOT turn itself completely on or off. So, we do recommend that some degree of control should be used with this type of heating cable (can be a simple led switch or a temperature controller).

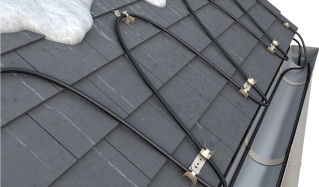

The cable is well suited for roof and gutter applications as well for pipe frost protection.
Key Benefits
Energy efficiency
Heats only when necessary
Easy to install
UV resistant
Can be exposed to direct sunlight
Cut to length
Can be cut on-site to the exact length required
Under heating or Overheating
Unlike constant wattage, there is no worry about under heating or over heating
Guarantee & Warranty
SafetyNet Installation Guarantee
If you accidentally damage the heating system during installation, return it to Warmup and we will replace it with another system of the same make and model free of charge.
5 Year Warranty
This product comes with a 5 Year Warranty. We are completely confident in the standard of our products.
| Operating voltage | 220-230V AC, 50Hz |
| Power rating | 20W/m at 10ºC |
| Cable diameter | 10,6 x 5,9mm |
| Insulation | Thermoplastic elastomer |
| Resistance tolerance | ±5% |
| Minimum/maximum temperature | -30ºC to 85ºC |
| Operating temperature | 70ºC |
| Minimum bending radius | 25mm |
| UV resistant | yes |
| Certificates |   |
Also needed
Temperature Controller
Choosing the correct control system is crucial in ensuring that the heating system works in the best possible way, efficiently and easily
Sensors
Depending on the type of application, a ground or roof sensor will be needed
Accessories
Depending on the type of application there is a diverse range of accessories to fix the cable.
